| | | Description | Model |

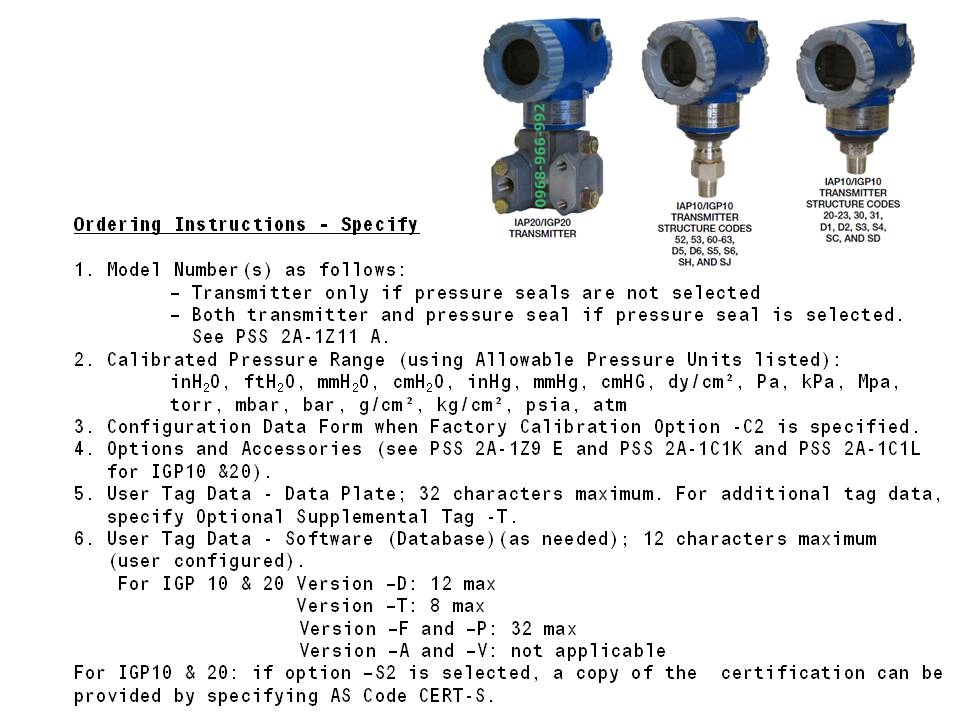

| IAP20 | = | Measures Pressure And Transmits A Proportional Electrical Signal | IAP20 |
| ELECTRONIC VERSION AND OUTPUT SIGNAL: | |
| D | = | Intelligent; Digital FoxCom Or 4 To 20 mA, Configurable | D |
| T | = | Intelligent; Digital HART & 4 To 20 mA | T (b) |
| F | = | Intelligent; FOUNDATION Fieldbus | F |
| A | = | 4
To 20 mA; Includes Explosionproof Rating And LCD Indicator With
Pushbuttons For Calibration, Configuration, Standard Pressure Units, And
Rearanging (Excludes Custom Labels And Intrinsic Safety Rating) | A |
| V | = | Voltage Output, 1 To 5 Vdc, Low Power, Including LCD Indicator With Pushbuttons | V |
| STRUCTURE CODE: | |
| 10 | = | Steel Hi-Side Cover, Co-Ni-Cr Sensor, Silicone Fill Fluid | 10 (c) |
| 11 | = | Steel Hi-Side Cover, Co-Ni-Cr Sensor, Fluorinert Fill Fluid | 11 (c) |
| 12 | = | Steel Hi-Side Cover, 316L ss Sensor, Silicone Fill Fluid | 12 |
| 13 | = | Steel Hi-Side Cover, 316L ss Sensor, Fluorinert Fill Fluid | 13 |
| 16 | = | Steel Hi-Side Cover, Hastelloy C Sensor, Silicone Fill Fluid | 16 |
| 17 | = | Steel Hi-Side Cover, Hastelloy C Sensor, Fluorinert Fill Fluid | 17 |
| 20 | = | 316 ss Hi-Side Cover, Co-Ni-Cr Sensor, Silicone Fill Fluid | 20 (c) |
| 21 | = | 316 ss Hi-Side Cover, Co-Ni-Cr Sensor, Fluorinert Fill Fluid | 21 (c) |
| 22 | = | 316 ss Hi-Side Cover, 316L ss Sensor, Silicone Fill Fluid | 22 |
| 23 | = | 316 ss Hi-Side Cover, 316L ss Sensor, Fluorinert Fill Fluid | 23 |
| 2G | = | 316 ss Hi-Side Cover, 316L ss Gold Plated Material, Silicone Fill Fluid | 2G |
| 24 | = | 316 ss Hi-Side Cover, Monel Sensor, Silicone Fill Fluid | 24 |
| 25 | = | 316 ss Hi-Side Cover, Monel Sensor, Fluorinert Fill Fluid | 25 |
| 26 | = | 316 ss Hi-Side Cover, Hastelloy C Sensor, Silicone Fill Fluid | 26 |
| 27 | = | 316 ss Hi-Side Cover, Hastelloy C Sensor, Fluorinert Fill Fluid | 27 |
| 34 | = | Monel Hi-Side Cover, Monel Sensor, Silicone Fill Fluid | 34 |
| 35 | = | Monel Hi-Side Cover, Monel Sensor, Fluorinert Fill Fluid | 35 |
| 46 | = | Hastelloy C Hi-Side Cover, Hastelloy C Sensor, Silicone Fill Fluid | 46 |
| 47 | = | Hastelloy C Hi-Side Cover, Hastelloy C Sensor, Fluorinert Fill Fluid | 47 |
| 48 | = | Hastelloy C Hi-Side Cover, Tantalum Sensor, Silicone Fill Fluid | 48 |
| 49 | = | Hastelloy C Hi-Side Cover, Tantalum Sensor, Fluorinert Fill Fluid | 49 |
| 78 | = | pvdf (Kynar) Cover, Tantalum Sensor, Silicone Fill Fluid | 78 |
| 79 | = | pvdf (Kynar) Cover, Tantalum Sensor, Fluorinert Fill Fluid | 79 |
| S3 | = | Silicone Fill In Sensor; Prepared For Foxboro Remote Seal | S3 |
| SC | = | Silicone Fill In Sensor; Prepared For Other Seals | SC |
| SD | = | Fluorinert Fill In Sensor; Prepared For Other Seals | SD |
| SPAN LIMITS: |
| B | = | 0.87 And 50 kPa, 3.5 And 200 inH2O, 8.7 And 500 mbar | B |
| C | = | 0.007 And 0.21 MPa, 1 And 30 psi, 0.07 And 2.1 bar or kg/cm² | C |
| D | = | 0.07 And 2.1 MPa, 10 And 300 psi, 0.70 And 21 bar or kg/cm² | D |
| E | = | 0.70 And 21 MPa, 100 And 3000 psi, 7.0 And 210 bar or kg/cm² | E |
| PROCESS CONNECTOR: (Matl Same As Process Cover) | |
| 0 | = | None, Connect Directly To Process Cover | 0 |
| 1 | = | 1/4 NPT | 1 |
|
|
| WITH (Structure Code:10, 11, 12, 13, 16, 17, 20, 21, 22, 23, 2G, 24, 25, 26, 27) |
|
|
| WITH (Structure Code:34, 35) |
| 2 | = | 1/2 NPT | 2 |
|
|
| WITH (Structure Code:10, 11, 12, 13, 16, 17, 20, 21, 22, 23, 2G, 24, 25, 26, 27) |
|
|
| WITH (Structure Code:34, 35, 46, 47, 48, 49) |
| 3 | = | Rc 1/4 | 3 |
|
|
| WITH (Structure Code:10, 11, 12, 13, 16, 17, 20, 21, 22, 23, 2G, 24, 25, 26, 27) |
|
|
| WITH (Structure Code:34, 35) |
| 4 | = | Rc 1/2 | 4 |
|
|
| WITH (Structure Code:10, 11, 12, 13, 16, 17, 20, 21, 22, 23, 2G, 24, 25, 26, 27) |
|
|
| WITH (Structure Code:34, 35, 46, 47, 48, 49) |
| 6 | = | 1/2 Schedule 80 Welding Neck | 6 |
|
|
| WITH (Structure Code:10, 11, 12, 13, 16, 17, 20, 21, 22, 23, 2G, 24, 25, 26, 27) |
|
|
| WITH (Structure Code:34, 35) |
| 7 | = | None, pvdf (Kynar) Insert Tapped For 1/2 NPT On Side Of 316 ss Process Cover | 7 |
| CONDUIT CONNECTION & HOUSING MATERIAL: | |
| 1 | = | 1/2 NPT Conduit Connection, Both Sides, Aluminum Housing | 1 |
| 2 | = | PG13.5 Conduit Connection, Both Sides, Aluminum Housing | 2 |
| 3 | = | 1/2 NPT Conduit Connection, Both Sides, 316 ss Housing | 3 |
| 4 | = | PG13.5 Conduit Connection, Both Sides, 316 ss Housing | 4 |
| 5 | = | M20 Conduit Connection, Both Sides, Aluminum Housing | 5 |
| 6 | = | M20 Conduit Connection, Both Sides, 316 ss Housing | 6 |
| ELECTRICAL SAFETY: | |
| E | = | ATEX Intrinsically Safe; II 1 GD, EEx ia IIC, Zone 0 | E |
|
|
| WITH (Electronic Version And Output Signal:D, T) |
|
|
| ATEX FISCO Intrinsically Safe; II 1 GD, EEx ia IIC, Zone 0 |
| D | = | ATEX Flameproof; II 2 GD EEx d IIC, Zone 1 | D |
| N | = | ATEX Protection n; II 3 GD, EEx nL IIC, Zone 2 | N |
|
|
| WITH (Electronic Version And Output Signal:T, D) |
|
|
| ATEX FNICO Protection n; II 3 GD, EEx nL IIC, Zone 2 |
| M | = | Multiple
ATEX Certifications - ATEX Intrinsically Safe; II 1 GD, EEx ia IIC,
Zone 0; Or II 1/2 GD EEx ib IIC, Zone 0 / Zone 1; Or ATEX Protection n,
II 3 GD, EEx nL IIC, Zone 2; Or ATEX Flameproof, II 2 GD EEx d IIC, Zone
1. The User Is Required to Permanently Mark In A Box On The Data Plate
One Type Of Protection Only (ia & ib, d, or n) And Not Change This
Mark. | M |
| C | = | CSA
Intrinsically Safe For Class I, Division 1, Groups A, B, C, & D;
Class II, Division 1, Groups E,F, & G; And Class III, Division 1.
Also Class I, Division 2, Groups A,B,C, & D; Class II, Groups F
& G; And Class III, Division 2. Explosionproof For Class I, Division
1, Groups B,C, & D; Dust-Ignitionproof For Class II, Division 1,
Groups E,F,G; And Class III, Div 1. Zone Certified Intrinsically Safe Ex
ia IIC And Ex n IIC. Dual Seal Certification per ANSI/ISA
12.27.01.2003. | C |
|
|
| WITH (Electronic Version And Output Signal:T, V) And (Conduit Connection & Housing Material:1, 3) |
|
|
| CSA
FISCO/FNICO Field Device Intrinsically Safe For Class I, Division 1,
Groups A, B, C, & D; Class II, Division 1, Groups E,F, & G; And
Class III, Division 1. Class I, Division 2, Groups A,B,C, & D; Class
II, Groups F & G; And Class III, Division 2. Explosionproof For
Class I, Division 1, Groups B,C, & D; Dust-Ignitionproof For Class
II, Division 1, Groups E,F,G; And Class III, Div 1. Zone Certified Ex ia
IIC And Ex n IIC. Dual Seal Certification per ANSI/ISA 12.27.01.2003. |
|
|
| CSA
Intrinsically Safe For Class I, Division 1, Groups A, B, C, & D;
Class II, Division 1, Groups E,F, & G; And Class III, Division 1.
Also Class I, Division 2, Groups A,B,C, & D; Class II, Groups F
& G; And Class III, Division 2. Explosionproof For Class I, Division
1, Groups B,C, & D; Dust-Ignitionproof For Class II, Division 1,
Groups E,F,G; And Class III, Div 1. Dual Seal Certification per ANSI/ISA
12.27.01.2003. |
|
|
| CSA
Explosionproof For Class I, Division 1, Groups B,C, & D;
Dust-Ignitionproof For Class II, Division 1, Groups E,F,G; Class III,
Division 1. Also Nonincendive For Class I, Division 2, Groups A,B,C,
& D; Class II, Division 2, Groups F & G; Class III, Division 2.
Dual Seal Certification per ANSI/ISA 12.27.01.2003. |
| B | = | CSA
Zone Certified Flameproof Ex d IIC. Also Explosionproof For Class I,
Division 1, Groups B,C & D And Dust-Ignitionproof For Class II,
Division 1 Groups E,F & G, And Class III, Division 1. Also
Intrinsically Safe For Class I, Division 1, Groups A,B,C & D; Class
II, Division 1, Groups E,F & G; And Class III, Division 1 And Class
I, Division 2, Groups A,B,C, & D; Class II, Groups F & G; And
Class III, Division 2. Zone Certified Intrinsically Safe Ex ia IIC And
Ex n IIC. | B |
|
|
| WITH (Electronic Version And Output Signal:T, V) And (Conduit Connection & Housing Material:1, 3) |
|
|
| CSA
Zone Certified Flameproof Ex d IIC. Also Explosionproof For Class I,
Division 1, Groups B,C & D And Dust-Ignitionproof For Class II,
Division 1 Groups E,F & G, And Class III, Division 1. Also
Intrinsically Safe For Class I, Division 1, Groups A,B,C & D; Class
II, Division 1, Groups E,F & G; And Class III, Division 1 And Class
I, Division 2, Groups A,B,C, & D; Class II, Groups F & G; And
Class III, Division 2. |
|
|
| CSA
Zone Certified Flameproof Ex d IIC. Also Explosionproof For Class I,
Division 1, Groups B,C & D And Dust-Ignitionproof For Class II,
Division 1 Groups E,F & G, And Class III, Division 1. Also Class I,
Division 2, Groups A,B,C & D; Class II, Division 2, Groups F &
G; And Class III, Division 2. |
|
|
| CSA
FISCO/FNICO Field Device Zone Certified Ex ia IIC And Ex n IIC
Intrinsically Safe And Zone Certified Flameproof Ex d IIC. Also
Intrinsically Safe For Class I, Division 1, Groups A, B, C, & D;
Class II, Division 1, Groups E,F, & G; And Class III, Division 1.
Class I, Division 2, Groups A,B,C, & D; Class II, Groups F & G;
And Class III, Division 2. Also Explosionproof For Class I, Division 1,
Groups B,C, & D; Dust-Ignitionproof For Class II, Division 1, Groups
E,F,G; And Class III, Div 1. |
| F | = | FM
Intrinsically Safe For Class I, Division 1, Groups A, B, C, & D;
Class II, Division 1, Groups E,F, & G; And Class III, Division 1.
Also Class I, Division 2, Groups A,B,C, & D; Class II, Groups F
& G; And Class III, Division 2. Explosionproof For Class I, Division
1, Groups B,C, & D; Dust-Ignitionproof For Class II, Division 1,
Groups E,F,G; And Class III, Div 1. Zone Certified Intrinsically Safe
AEx ia IIC And AEx n IIC. | F |
|
|
| WITH (Electronic Version And Output Signal:T, V) And (Conduit Connection & Housing Material:1, 3) |
|
|
| FM
Intrinsically Safe For Class I, Division 1, Groups A, B, C, & D;
Class II, Division 1, Groups E,F, & G; And Class III, Division 1.
Also Class I, Division 2, Groups A,B,C, & D; Class II, Groups F
& G; And Class III, Division 2. Explosionproof For Class I, Division
1, Groups B,C, & D; Dust-Ignitionproof For Class II, Division 1,
Groups E,F,G; And Class III, Div 1. |
|
|
| FM
FISCO/FNICO Field Device Intrinsically Safe For Class I, Division 1,
Groups A, B, C, & D; Class II, Division 1, Groups E,F, & G; And
Class III, Division 1. Class I, Division 2, Groups A,B,C, & D; Class
II, Groups F & G; And Class III, Division 2. Explosionproof For
Class I, Division 1, Groups B,C, & D; Dust-Ignitionproof For Class
II, Division 1, Groups E,F,G; And Class III, Div 1. Zone Certified AEx
ia IIC And AEx n IIC. |
|
|
| FM
Explosionproof For Class I, Division 1, Groups B,C, & D;
Dust-Ignitionproof For Class II, Division 1, Groups E,F,G; Class III,
Division 1. Also Nonincendive For Class I, Division 2, Groups A,B,C,
& D; Class II, Division 2, Groups F & G; Class III, Division 2. |
| G | = | FM
Zone Certified Flameproof AEx d IIC. Also Explosionproof For Class I,
Division 1, Groups B,C & D And Dust-Ignitionproof For Class II,
Division 1 Groups E,F & G, And Class III, Division 1. Also
Intrinsically Safe For Class I, Division 1, Groups A,B,C & D; Class
II, Division 1, Groups E,F & G; And Class III, Division 1 And Class
I, Division 2, Groups A,B,C, & D; Class II, Groups F & G; And
Class III, Division 2. Zone Certified Intrinsically Safe AEx ia IIC And
AEx n IIC. | G |
|
|
| WITH (Electronic Version And Output Signal:T, V) And (Conduit Connection & Housing Material:1, 3) |
|
|
| FM
Zone Certified Flameproof AEx d IIC. Also Explosionproof For Class I,
Division 1, Groups B,C & D And Dust-Ignitionproof For Class II,
Division 1 Groups E,F & G, And Class III, Division 1. Also
Intrinsically Safe For Class I, Division 1, Groups A,B,C & D; Class
II, Division 1, Groups E,F & G; And Class III, Division 1 And Class
I, Division 2, Groups A,B,C, & D; Class II, Groups F & G; And
Class III, Division 2. |
|
|
| FM
Zone Certified Flameproof AEx d IIC. Also Explosionproof For Class I,
Division 1, Groups B,C & D And Dust-Ignitionproof For Class II,
Division 1 Groups E,F & G, And Class III, Division 1. Also
Nonincendive For Class I, Division 2, Groups A,B,C & D; Class II,
Division 2, Groups F & G; And Class III, Division 2. |
|
|
| FM
FISCO/FNICO Field Device Zone Certified AEx ia IIC And AEx n IIC
Intrinsically Safe And Zone Certified Flameproof AEx d IIC. Also
Intrinsically Safe For Class I, Division 1, Groups A, B, C, & D;
Class II, Division 1, Groups E,F, & G; And Class III, Division 1.
Class I, Division 2, Groups A,B,C, & D; Class II, Groups F & G;
And Class III, Division 2. Also Explosionproof For Class I, Division 1,
Groups B,C, & D; Dust-Ignitionproof For Class II, Division 1, Groups
E,F,G; And Class III, Div 1. |
| T | = | IECEx Intrinsically Safe, FISCO Ex ia IIC T4 | T |
|
|
| WITH (Electronic Version And Output Signal:F) |
|
|
| IECEx Intrinsically Safe, Ex ia IIC T4 |
| U | = | IECEx Intrinsically Safe, Protection n; FNICO Ex | U |
|
|
| WITH (Electronic Version And Output Signal:F) |
|
|
| IECEx Intrinsically Safe, Protection n; Ex nL IIC T4 |
| V | = | IECEx Flameproof, Ex d IIC T6 | V |
| W | = | Multi Mark (Intrinsic safe ONLY for FM, CSA & ATEX) | W |
| OPTIONAL MODEL SUFFIX(ES) INCLUDED: (a) | |
| M1 | = | Painted Steel Mounting Bracket With Plated Steel Bolts For Use With 1/2 NPT | M1 |
| M2 | = | 316 ss Mounting Bracket With 316 ss Bolts For Use With 1/2 NPT | M2 |
| M3 | = | Universal 304 S.Steel Bracket With 304 S.S Bolts Stainless Steel Bolts | M3 |
| L1 | = | Digital Indicator, Internal Pushbuttons, And Window Cover | L1 |
|
|
| WITH (Conduit Connection & Housing Material:1, 2, 5) |
|
|
| WITH (Conduit Connection & Housing Material:3, 4, 6) |
| L2 | = | Blind (Solid) Cover Over Standard LCD | L2 (d) |
| S2 | = | SIL2 TUV Rhineland | S2 |
| D1 | = | Single Ended Process Covers With Standard Steel M10 Bolting | D1 (e) |
| D2 | = | Double Ended Process Covers With Standard Steel M10 Bolting (Blind Kidney Flange On Back) | D2 (f) |
| D3 | = | Single Ended Process Covers With Standard Steel 7/16-Inch Bolting | D3 |
| D4 | = | Double Ended Process Covers With Standard Steel 7/16-Inch Bolting (Blind Kidney Flange On Back) | D4 (f) |
| D5 | = | Single Ended Process Covers With 316 ss 7/16-Inch Bolting | D5 (g) |
| D6 | = | Double Ended Process Covers With 316 ss 7/16-Inch Bolting (Blind Kidney Flange On Back) | D6 (f) |
| D7 | = | Single Ended Process Covers With 17-4 ss 7/16-Inch Bolting | D7 |
| D8 | = | Double Ended Process Covers With 17-4 ss 7/16-Inch Bolting (Blind Kidney Flange On Back) | D8 (f) |
| X1 | = | Unit Degreased (Not For Oxygen/Chlorine Service) | X1 |
| X2 | = | Cleaned And Prepared For Oxygen Service | X2 |
| X3 | = | Cleaned And Prepared For Chlorine Service | X3 |
| B1 | = | 316 ss Bolts And Nuts | B1 |
|
|
| WITH (Process Connector:0) |
|
|
| WITH (Process Connector:1, 2, 3, 4, 6) |
| B2 | = | 17-4 ss Bolts And Nuts | B2 |
|
|
| WITH (Process Connector:0) |
|
|
| WITH (Process Connector:1, 2, 3, 4, 6) |
| B3 | = | B7M Bolts And Nuts (NACE) | B3 (h) |
|
|
| WITH (Process Connector:0) |
|
|
| WITH (Process Connector:1, 2, 3, 4, 6) |
| A1 | = | Hawke Type Cable Gland | A1 |
| A2 | = | Plastic PG13.5 Connector | A2 |
| A3 | = | M20 Connector | A3 |
| A4 | = | Trumpet Shaped PG13.5 Cable Gland (Nickel Plated Brass) | A4 |
| Z1 | = | External Zero Adjustment | Z1 |
| Z2 | = | Custody Transfer Lock And Seal | Z2 |
| Z3 | = | External Zero Adjustment And Custody Transfer Lock And Seal | Z3 |
| E1 | = | Steel Ermeto Connector, Connecting 6 mm Tubing To 1/4 NPT Process Connector | E1 |
| E2 | = | Steel Ermeto Connector, Connecting 12 mm Tubing To 1/2 NPT Process Connector | E2 |
| E3 | = | 316 ss Ermeto Connector, Connecting 6 mm Tubing To 1/4 NPT Process Connector | E3 |
| E4 | = | 316 ss Ermeto Connector, Connecting 12 mm Tubing To 1/2 NPT Process Connector | E4 |
| C1 | = | Digital Output (4 To 20 mA Default If Not Selected) | C1 |
| C2 | = | Full Factory Configuration (Requires Configuration Form) | C2 |
| H1 | = | Manifold Attachment and Leak Tested | H1 |
| H2 | = | Manifold Attachment and Pressure Certificatiion | H2 |
| K1 | = | Without Instruction Book & CD | K1 (i) |
| V | = | Vent Screw In Side Of Process Cover | V |
|
|
| WITH (Structure Code:10, 11, 12, 13, 16, 17, 20, 21, 22, 23, 2G, 24, 25, 26, 27) |
|
|
| WITH (Structure Code:34, 35) |
|
|
| WITH (Structure Code:46, 47, 48, 49) |
| T | = | Supplemental Customer Tag | T |
| J | = | Low Temperature Operative Limit Of -50°C (-58°F) | J |
| (a) Standard transmitter (no K option specified) includes a paper instruction manual and a full documentation set on a CD. |
| (b)
WirelessHART Adaptors, Temperature Converters and Gateways can be
ordered separately via part numbers 217233, 217234, 211735, 220390,
211734, 219035 and 211749 . |
| (c)
Refer to TI 37-75b and 37-78 for information regarding the highly
corrosion-resistant properties of cobalt-nickel-chrome (Co-Ni-Cr) sensor
material. |
| (d)
Electronics version A & V have LCD and Window Cover as standard.
Only specify -L2 option to substitute solid cover for standard window
cover. |
| (e) Pressure limited to 2320 psi (160 bar). |
| (f) Pressure limited to 1500 psi (100 bar) and temperature operating range limited to 0 to 60°C (32 to 140°F). |
| (g) Pressure limited to 2175 psi (150 bar). |
| (h) Normally requires selection of AS Reference MR-01 |
| (i) Only a brief "Getting Started" document is supplied. |
Vui lòng liên hệ với đại lý ủy quyền của Foxboro tại Việt Nam để được hỗ trợ: ☞ Foxboro Vietnam>>
Đăng nhận xét Blogger Facebook
