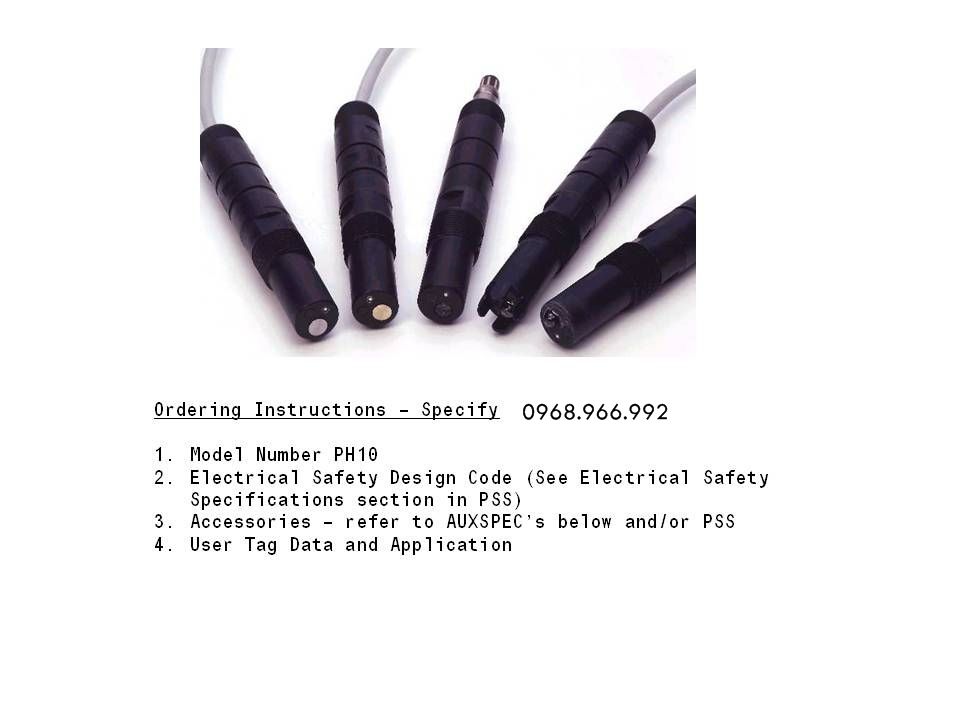

Foxboro PH10 DolpHin Series pH Sensor | Foxboro Vietnam

Foxboro PH10 DolpHin Series pH Sensor - Cảm biến đo độ PH.

Foxboro PH10-1N2Q

Bảng lựa chọn thông số cảm biến đo PH - PH10 (DolpHin Series pH Sensor ) của hãng Foxboro:

		Description	Model
PH10	=	Provides Highly Accurate And Stable pH Measurements In Process Applications. NOTE: Mounting Hardware Accessories Have Longer Lead Times Than The Base Sensor. If 1 Week Delivery Is Required For The Sensor, Order the Mounting Hardware Accessories As Separate Line Items.	PH10
pH ELECTRODE TYPE:
1	=	Domed Glass High Temperature Bulb With Protective Guard	1
2	=	Domed Glass High Temperature Bulb Without Protective Guard	2
3	=	Flat Ruggedized Glass	3
4	=	Antimony	4
ELECTRONIC CONFIGURATION:
N	=	None	N
P	=	Internal Preamp	P
S	=	Smart	S
TEMPERATURE COMPENSATION:
1	=	2-Wire, 100 ohm Platinum RTD	1
2	=	3-Wire, 1000 ohm Platinum RTD	2
3	=	2-Wire, 100 ohm Platinum RTD, Enhanced Response Speed	3
4	=	3-Wire, 1000 ohm Platinum RTD, Enhanced Response Speed	4
5	=	2-Wire, 3 kohm Balco RTD	5
SENSOR TERMINATION:
A	=	10 Ft (3.05 m) Integral Cable Terminated w/Crimped -On Straight Pin Lugs	A
B	=	10 Ft (3.05 m) Integral Cable Terminated w/Variopin "Quick" Connector	B (b)
Q	=	Variopin "Quick" Connector Integral To Sensor	Q (c)
S	=	Smart Connector Integral To Sensor	S (c)
OPTIONAL MODEL SUFFIX(ES) INCLUDED:
E	=	EPDM O-Ring	E (d)
C	=	Chemraz O-Ring	C (d)
2	=	Integral Sensor Cable, 20 Ft (6.1 m) Long	2
3	=	Integral Sensor Cable, 30 Ft (9.1 m) Long	3
4	=	Integral Sensor Cable, 40 Ft (12.2 m) Long	4
5	=	Integral Sensor Cable, 50 Ft (15.2 m) Long	5
1H	=	Integral Hi-Temp Sensor Cable, 10 Ft (3.05 m) Long	1H
2H	=	Integral Hi-Temp Sensor Cable, 20 Ft (6.1 m) Long	2H
3H	=	Integral Hi-Temp Sensor Cable, 30 Ft (9.1 m) Long	3H
4H	=	Integral Hi-Temp Sensor Cable, 40 Ft (12.2 m) Long	4H
5H	=	Integral Hi-Temp Sensor Cable, 50 Ft (15.2 m) Long	5H
AA	=	ATEX, II 1 G Ex ia IIc, Intrinsically safe, Zone 0	AA
AN	=	ATEX, II 3 G Ex icic IIC Energy Limited, Zone 2	AN
CA	=	CSA and FMc, Ex ia IIC, Energy Limited, Zone 0	CA
CN	=	CSA and FMc, Ex ic IIC, Nonincendive, Cl I, II, III, Div 2, Zone 2	CN
FA	=	FM, Aex ia IIC, Intrinsically safe, Class I, II, III, Div 1, Zone 0	FA
FN	=	FM, Aex ic IIC, Nonincendive, Class I, II, III, Div 2, Zone 2	FN
DA	=	IECEx, II 1 G, Ex ia IIC, Intrinsically safe, Zone 0	DA
DN	=	IECEx, II 3 G, Ex ic IIC, Energy Limited, Zone 2	DN
(b) Requires mating patch cord with integral Variopin connector, if not customer supplied. Not compatible with Ball Valve Assembly mountings.
(c) Requires mating patch cord with integral Variopin connector, if not customer supplied.
(d) Standard O-Ring material is Viton.
